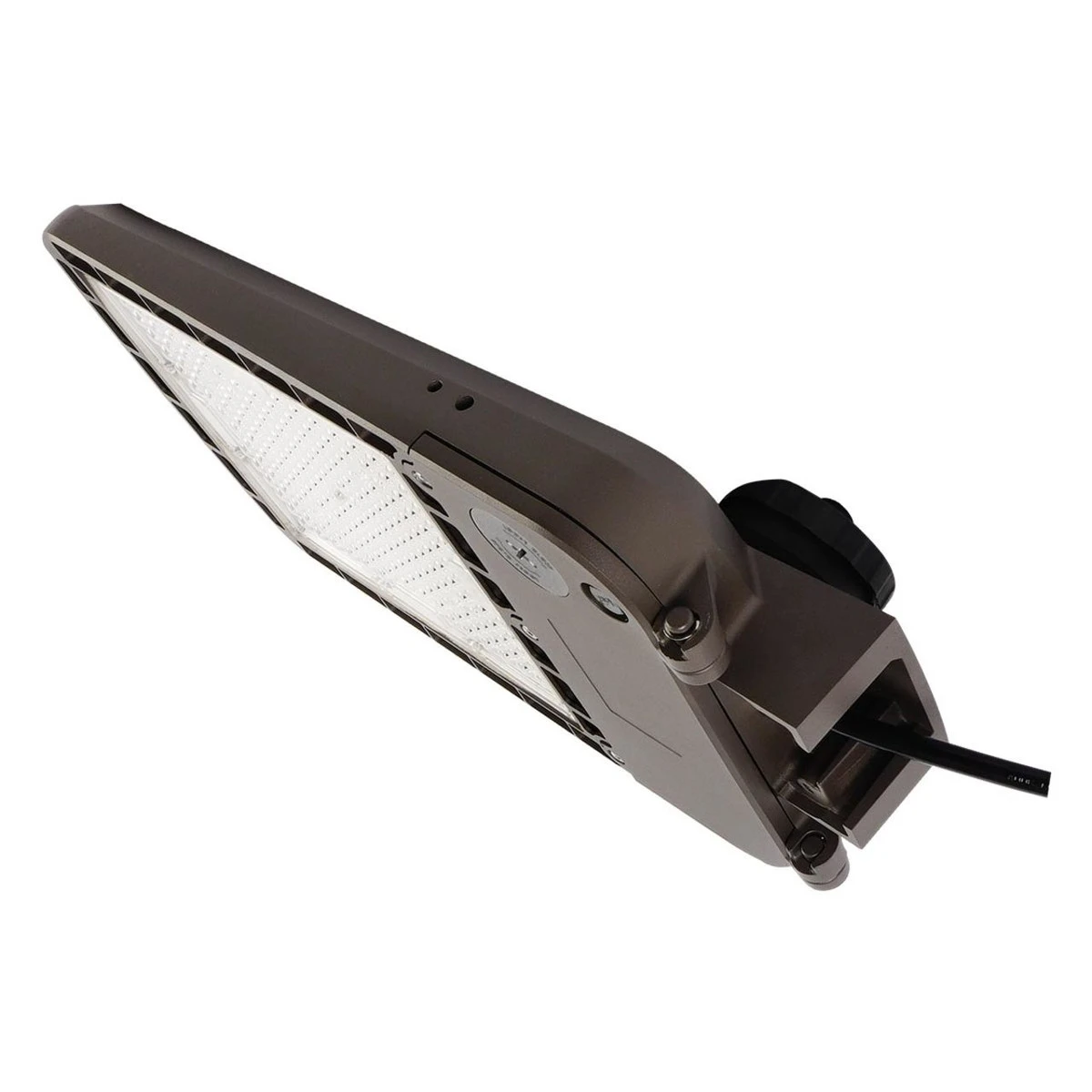

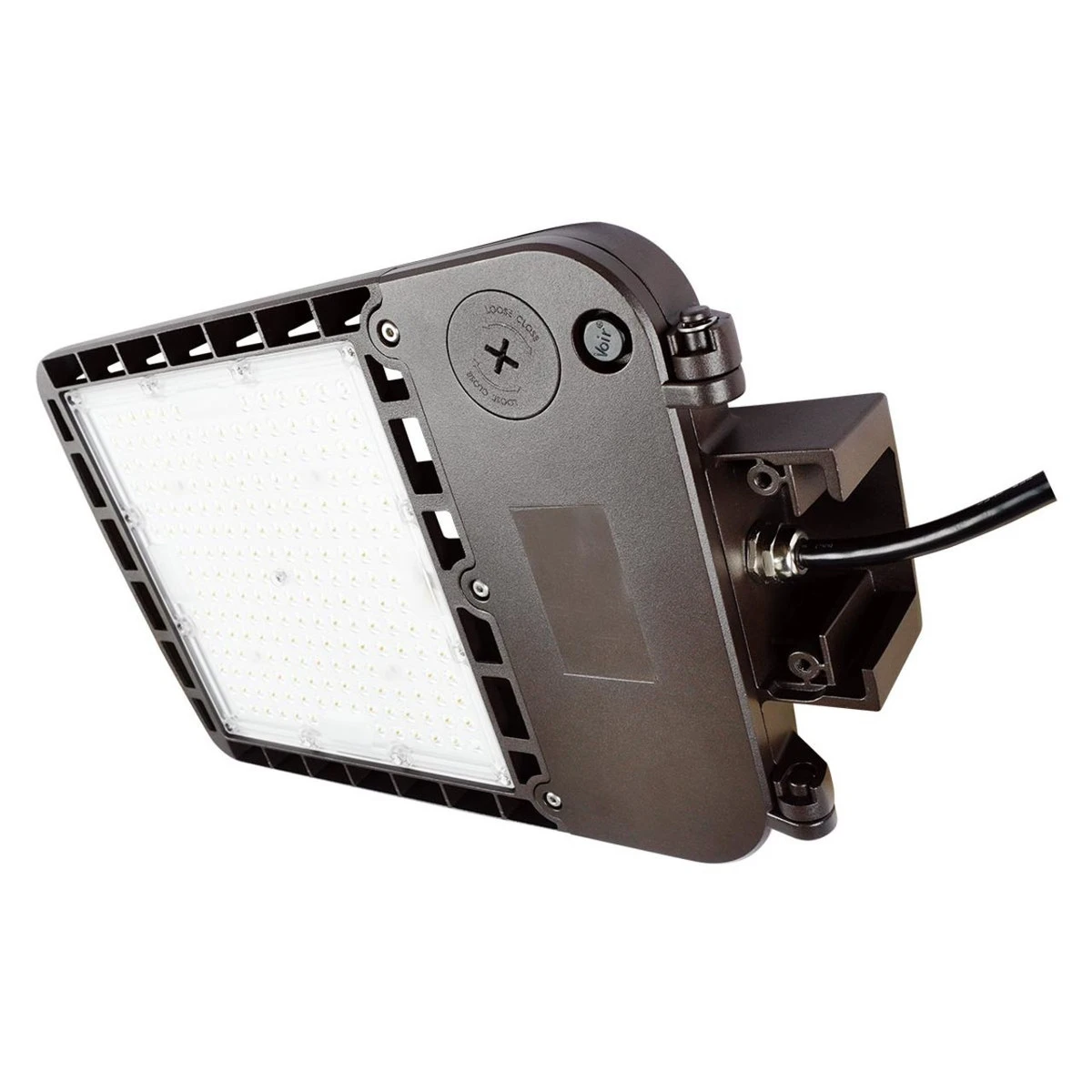

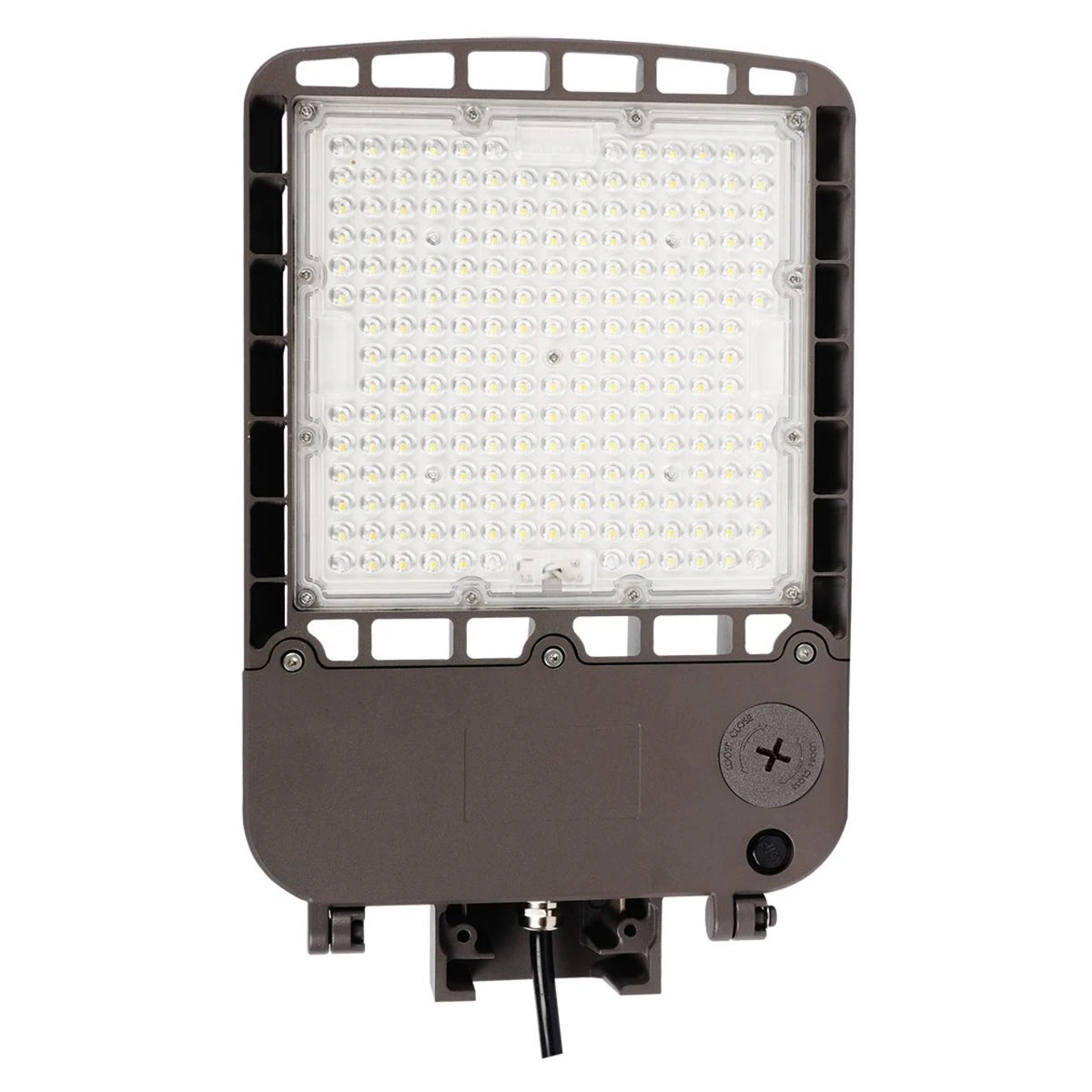

LED Wattage Adjustable Area Light Shoebox – 70W/100W/150W – 5000K – LumeGen

Outdoor LED Shoebox Area Light – Parking Lot Lights and Other Commercial Site Lighting Applications

This Wattage Tunable LED Area Light is designed to illuminate roadways, walkways, parking lots, building exteriors, loading docks, and many other large outdoor areas. This LED area light represents the classic shape of an HID area light with thin profile and quicker installation process to reduce installation time by 50%. This LED area light is suitable for wet locations. It is suitable for a variety of mounting options (mounting adapters sold separately) and there is an available photosensor (sold separately) available for add-on.

This light uses a high efficiency LED driver with a wide range input voltage of AC 100-277V. It also uses BRIDGELUX 2835 LED Chips. It is equipped with Type III optics as well.

At 130 lumens per watt, this Wattage Selectable LED area light produces up to 19,500 lumens when operating at the highest wattage of 150W and 13,000 lumens at the 100W setting. It produces approximately 9,100 lumens at lowest setting of 70W.

This light is available in 5000K color temperature that is perfect for various outdoor applications. This area light boasts die-cast aluminum housing with a dark brown powder finish. Its lens is made of heat-resistant polycarbonate (PC) that is anti-UV and flame resistant. It is also IP65 rated meaning it is dust-tight and can withstand jets of water to ensure a long lifespan out in the elements.

Different Mounting Accessories – Pole or Wall Mounting

There are four mounting accessories for this light that can be purchased separately:

• LEDMKAL1000050700 – Type A Slip Fitter Bracket
• LEDMKAL1000050701 – Type B Square/Round Pole Mount with Knuckle Bracket
• LEDMKAL1000050702 – Type C Fixed Arm Bracket
• LEDMKAL1000050703 – Type D Trunion Bracket

LED Area Light Photocell – Dusk to Dawn Fixture

This area light comes with a shorting cap by default. Photocell sensor SKU LEDLHLS1000050732 can be purchased separately to make this fixture dusk to dawn.

This LED area light is also DLC Premium V5.1 listed meaning it is highly energy efficient and may qualify for utility rebates in certain areas. Check out our Rebate Assistant tool to find if this product qualifies for you!

Shop our Commercial Lighting for a selection of lighting to fit your needs for various commercial applications.

Product Dimensions – 15.9″ L x 9.8″ W x 2.6″ H

What are area lights?

Area lights are used to illuminate large outdoor areas including but not limited to parking lots, student or work campuses, The main purpose other than illumination is safety. Area lights can be mounted in a variety of ways making them ideal for numerous applications.
