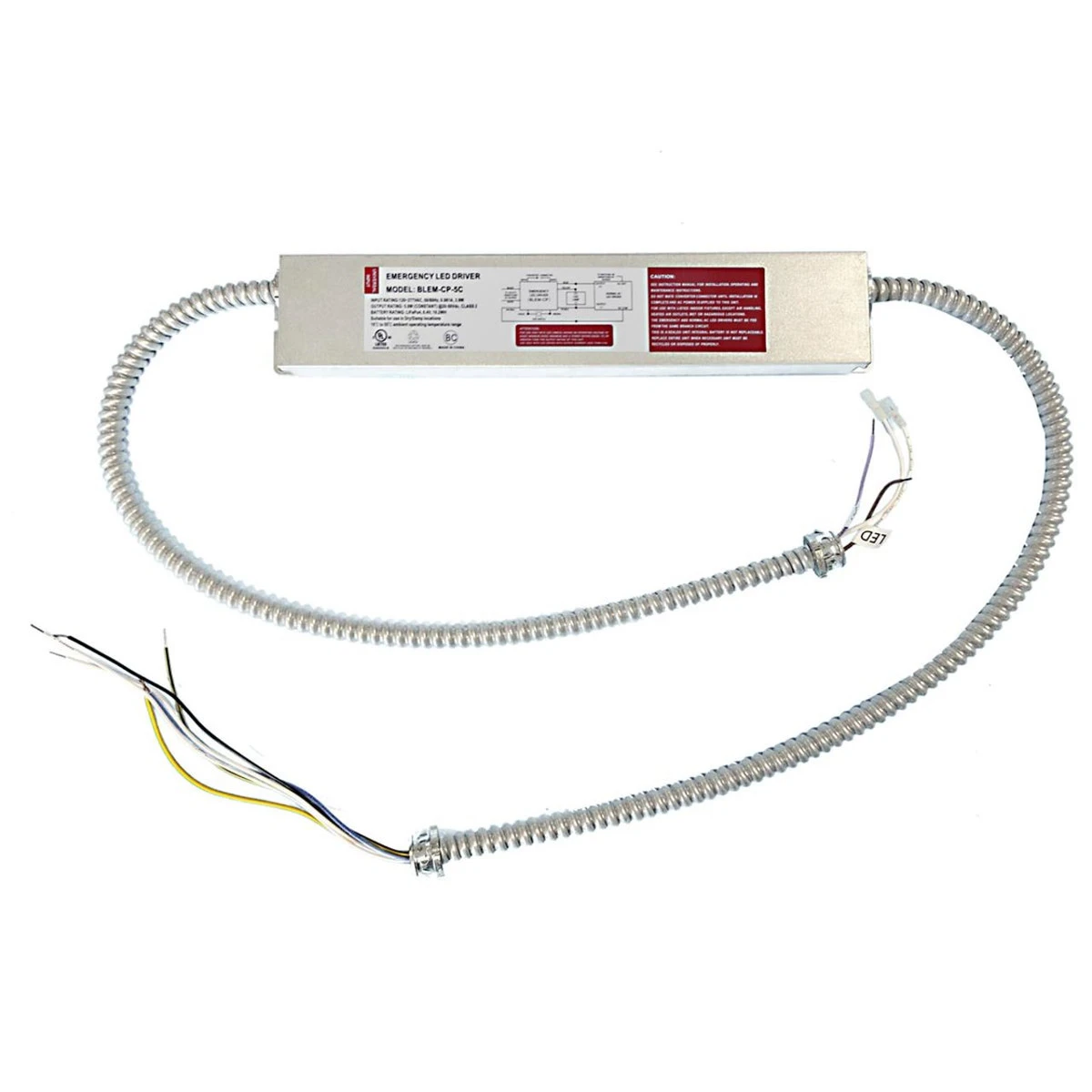

Constant-Power Emergency Driver Gen2 – 5W – 90 Minute Backup Time – 2ft. Flex Conduit On Ends – LumeGen

This Constant-Power Emergency LED Driver provides constant power output to the load during emergency mode operation. Emergency LED Drivers are required by code in certain public and commercial applications. The emergency LED driver can be operated as normally-on, normally-off, or switched load. Reference the Series System Coordination Guidelines on the spec sheet to ensure the system is installed to deliver code-compliant path of egress illumination.

Includes charge/power “on” LED indicator light and push-to-test switch for mandated code compliance testing. The battery is a long-life, maintenance free, rechargeable lithium iron phosphate battery with 24 hour maximum battery recharge time. It has surge protection per C62.41 (TVS) and input over current protection with fusible link.

The housing is low profile galvanized steel construction. Its compact design allows for installation of non-conduit models (inside most LED fixtures). This emergency LED Driver can be mounted. In standard models it is suitable for inside or top mount of LED fixtures. In conduit models, it is suitable for remote mount to the LED fixture. Fixture mounting plates are available and sold separately.

This emergency backup LED driver is UL classified for factory or field installation. It is suitable for damp locations and meets UL924, NFPA 101 Life Safety code, NEC, OSHA, Local and State codes. 5 year warranty on all electronics and housing.

Input Current (A) – 0.061

Input Power (W) – 3.9

Output Voltage (V) – 20-50

Output Power (W) – 5

Output Current (mA) – 250-100

Input Frequency (Hz) – 50-60

Product Dimensions – 10.44″ L x 2.5″ W x 1.19″H

This emergency LED Driver also has 2′ of flex conduit on each end.***

***Please note that when battery packs are remote-mounted, the remote distance cannot exceed half of the distance from driver to LED load specificized by the A.C. driver manufacturer. The maximum allowable remote mounting distance is 20 feet.
