Case Of 25 – 4ft Color Tunable LED T8 Tube – Type B – 15W – 2200 Lumens – LumeGen

VOLUME PRICING – SAVE 5% WHEN YOU BUY A PALLET OF 40 CASES OF 25!

Case of 25 4ft. Color Tunable LED T8 Tube – Type B – 15W – 2200 Lumens By LumeGen

This Color Tunable 4ft. LED T8 Direct Wire Tube is a perfect pick for any commercial or residential setting including super markets, factories, hotels, conference rooms, schools, and offices. LED Tubes are more energy efficient and longer lasting than fluorescent tubes and contain no hazardous materials! Made with frosted glass.

This LED Tube is Type B meaning it is NOT compatible with fluorescent ballast. This tube requires the existing ballast to be removed from the fixture prior to installation and wires directly into line voltage. This LED Tube is configured for Single-Ended or Double-Ended Power and can utilize shunted or non-shunted sockets so you won’t have to worry about changing lamp holders.

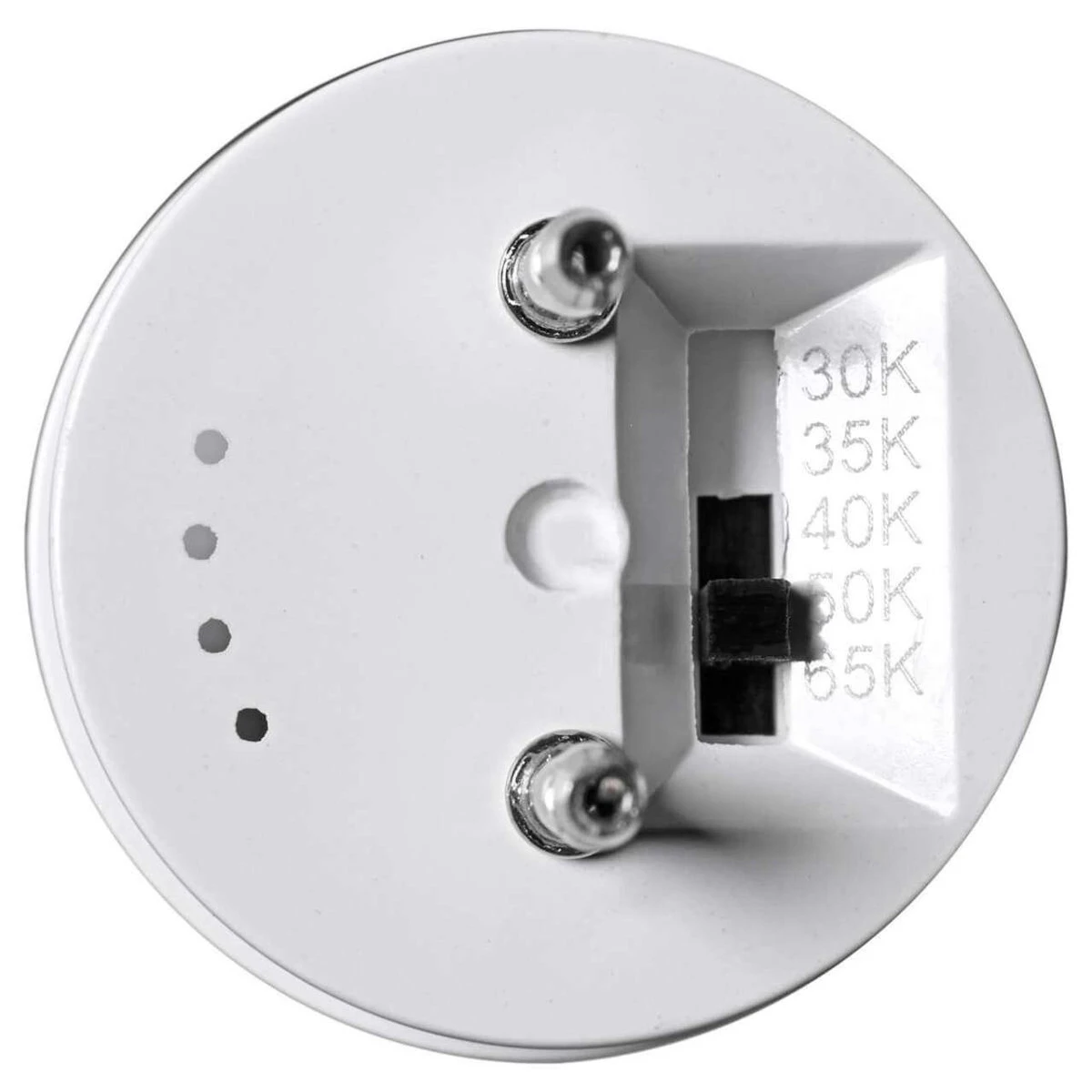

This tube is also color tunable and allows the user to select between 3000K, 3500K, 4000K, 5000K, and 6500K packing a lot of options in 1 tube.

Existing fluorescent ballast must be bypassed for proper operation!

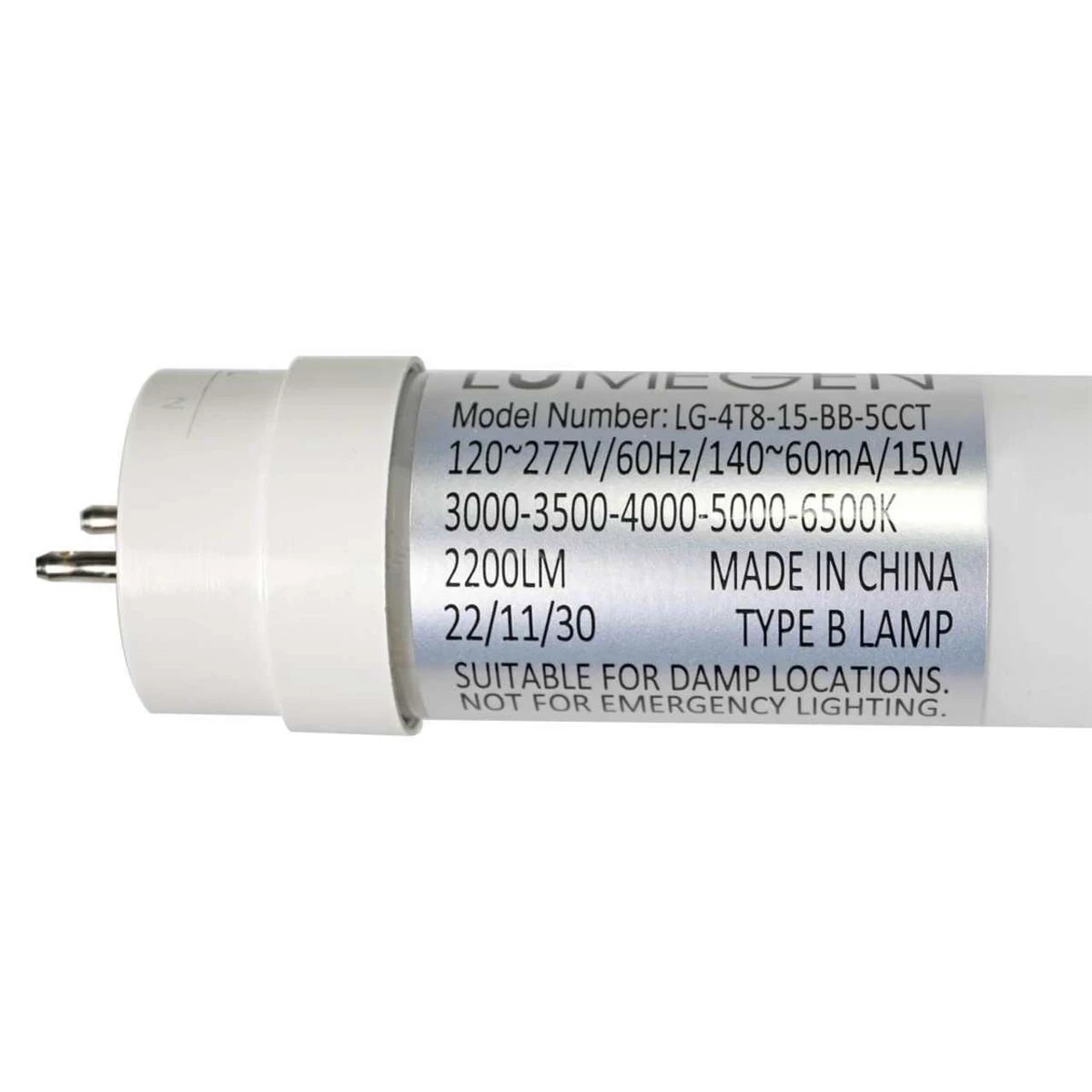

Notable Specs:

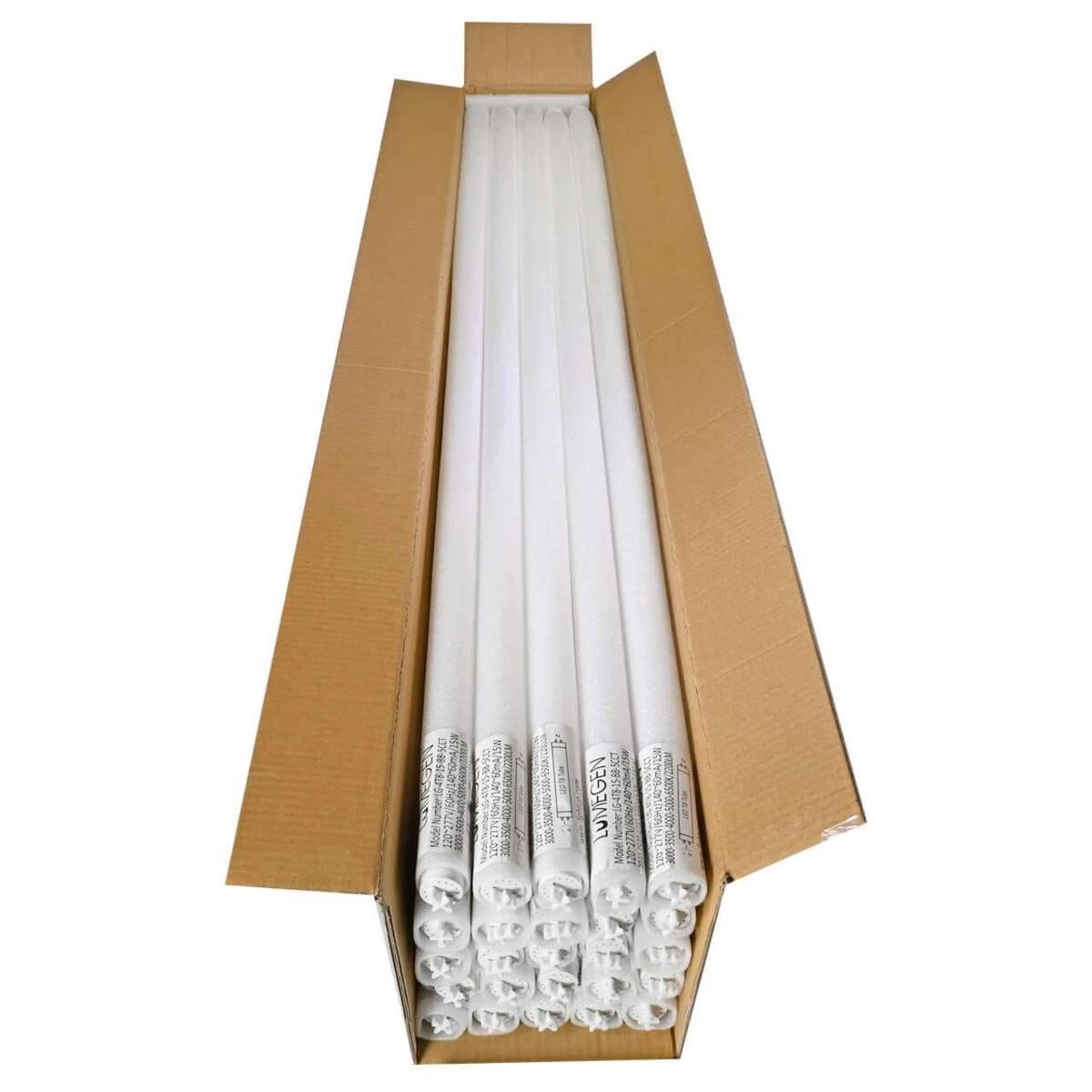

• Case of 25
• Type B
• 4ft. Length
• 15W
• 32W Fluorescent Tube Equivalent
• 2200 Lumens
• Dimmable (Phase-cut requires compatible dimmer – see spec sheet)
• Color Tunable that allows selection between 3000K, 3500K, 4000K, 5000K, 6500K
• AC120-277V Input Voltage
• Single & Double Ended Power
• Frosted Glass lens

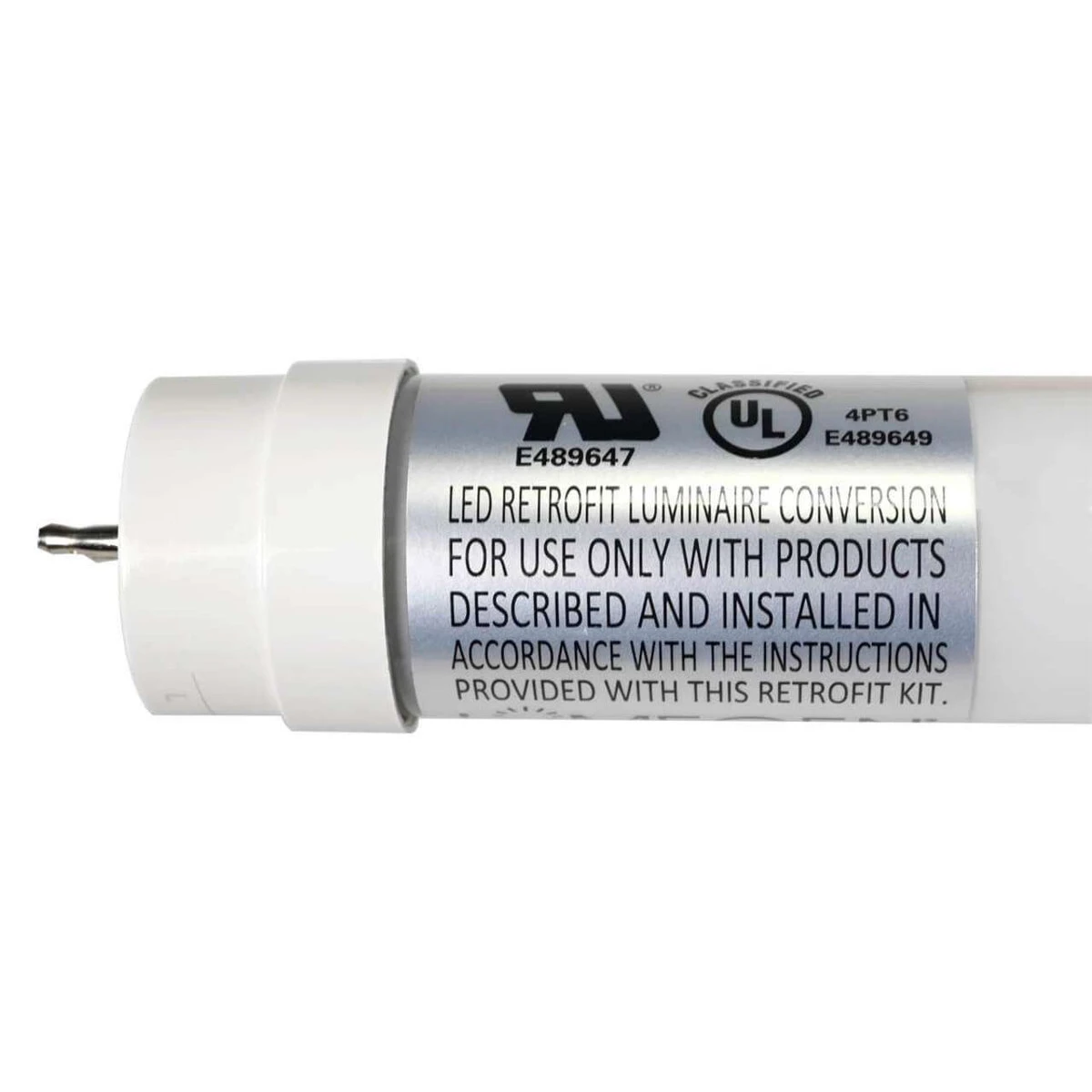

• UL Listed, DLC Standard
• DLC QPL ID: S-W4EQ6R

Discover the Benefits of Plug and Play LED Tubes

Plug and Play LED Tubes are here to stay! They make it easy to replace fluorescent tubes and upgrade your space with bright LED light. Plug and play tubes are easy to install. The process is easy as Step 1, 2, and 3.*

1. Turn off power to the light being changed before installation using the switch on the breaker panel.
2. Remove the fluorescent tubes. Remember – Fluorescent tubes contain mercury and should be disposed of properly.
3. Install the LED tubes and turn the power back on.

*Please make sure to read the instruction manual of the LED tubes and fixture the tubes are being installed into as the above instructions may not be 100% correct per the specific tubes or product.

FAQ

Q: Can you put led tube lights in a fluorescent fixture? Can I replace my fluorescent T8 linear bulbs with LEDs?

A: Yes, LED tubes are designed fit in the same sockets as traditional fluorescent tubes however there are two main types of LED tube lamps available – Type A Ballast Compatible and Type B Ballast Bypass.

Type A Ballast Compatible (also known as plug-and-play) are designed to work with the existing fluorescent ballast in the fixture. It is important to know the specific ballast in the fluorescent fixture and ensure compatibility with the LED Tube BEFORE selecting a Type A tube. Not all Type A LED Tubes work with every fluorescent ballast. Ensuring compatibility is vital to safe installation and operation!

Type B Ballast Bypass (also know as direct wire) require the fluorescent ballast to be cut out and removed from the circuit before installation. These tubes CANNOT be installed with a fluorescent ballast in place!

Combination Type AB tubes are hybrid which can be installed as plug-and-play or as ballast bypass. It is important to ensure ballast compatibility for these tubes if planned to use with existing fluorescent ballast. Type AB can be used with or without a ballast. It is ultimately the buyer’s preference what they want to do. Type A installation uses the LED Tube + Ballast power for more energy consumption compared to Type B installation only uses the raw tube power and is more energy-efficient.

Q: Can a T8 LED Replace a T12?

A: Yes, a T8 can replace a T12 bulb of the same length and wattage.

Q: What is the lifespan of LED Tubes?

A: LED Tubes last 50,000 hours on average compared to an average of 20,000 hours for fluorescent tubes.

Emergency Drivers: Constant-power emergency drivers with 90-minute run time are available to add on to your LED high bays to increase fire safety and comply with local fire safety codes. Check out our selection of LED emergency drivers.
