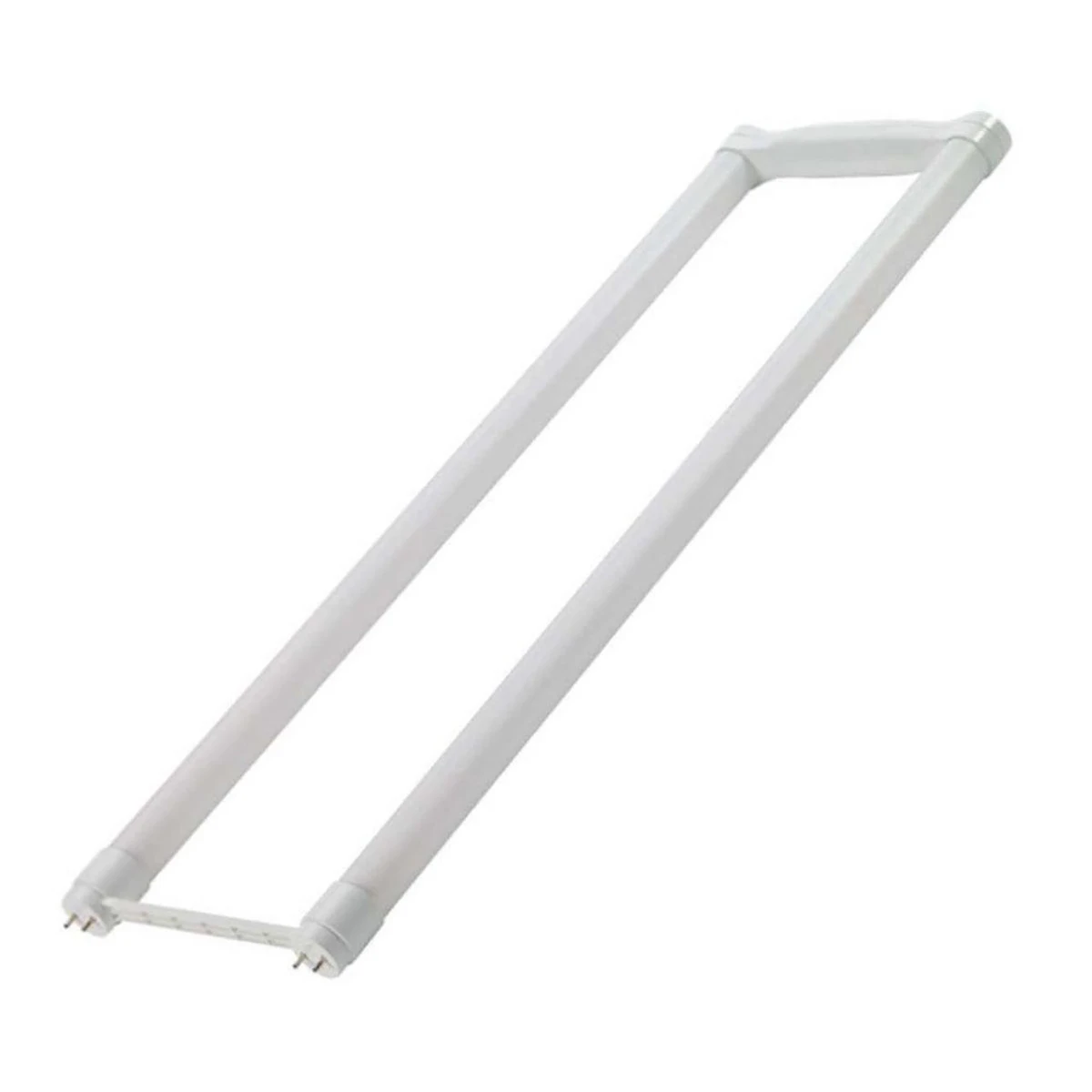

Case Of 12 – LED U-Bend T8 Type B Tube – 18W – Keystone

Keystone LED T8 Type B U-Bend Lamps are an Easy Fluorescent Replacement and NSF Listed as Food-Safe Lighting

These LED tubes are the replacement for fluorescent lamps. They offer numerous benefits over their fluorescent predecessors including instant startup, being UL Classified, and being 40% more energy efficient. Additionally, these lamps contain no mercury and have a frosted lens to eliminate pixelation. These lamps can also be used in both dry and damp locations.

These T8 U-Bend LED tubes are Type B and are often referred to as “ballast bypass.” They work with all fluorescent fixtures including ballast-free fixtures. Type B linear tubes power goes directly to the lamp sockets and no longer through the ballast. When these LED tubes are installed, use non-shunted lampholders only!

Specifications:

• Case of 12
• Type B
• 18W
• 32W Fluorescent Tube Equivalent
• Available in 3 different color temperatures:
  • 3500K Neutral White: 2100 Lumens (116 lm/W)
  • 4000K Cool White: 2150 Lumens (119 lm/W)
  • 5000K Daylight: 2200 Lumens (122 lm/W)
• >80 CRI
• Single Ended Power
• 220° Beam Angle
• 120-277V
• Shaterproof Coated Glass with Frosted Lens
• G13 (Medium Bi-Pin)
• UL Listed, RoHS Compliant, NSF Listed (NSF/ANSI Standard 2 – Food Equipment), and DLC Listed
  • DLC Standard 5.1 Product ID – 3500K: PLKKB3A306BY | 4000K: PLNI914P86DE | 5000K: PLTLUPBOPDAN

Product Dimension – 22.25″ L x 6″ W x 1.00″ H

What does ballast bypass mean? How does ballast bypass work?

Ballast bypass means when installing the LED linear tube, the fixture’s ballast will need to be removed first. The power will then go directly to the lamp sockets and no longer through the ballast. The benefits of ballast bypass LED replacement tubes include lights not being shut down by a ballast failure, no more ballast replacements, and savings on the energy bill because energy is no longer drawing from the ballast.

These LED tubes are DLC Standard 5.1 rated and may be eligible for additional utility rebates in certain areas. Check out our Rebate Assistant tool to find if this product qualifies for you!
