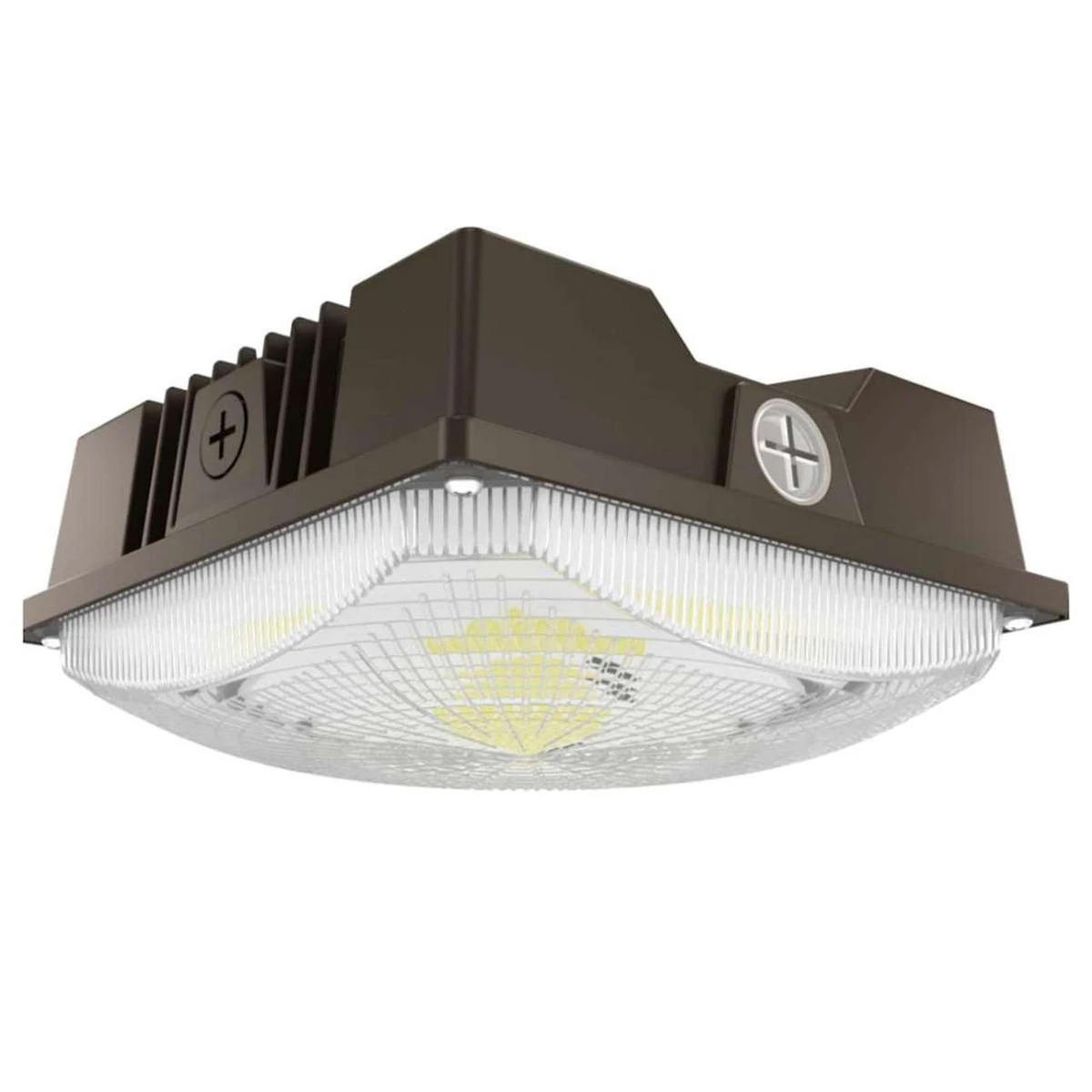

8in. LED Wattage Adjustable & Color Tunable Bronze Canopy Light – 20W/30W/40W – 3000K/4000K/5000K – Keystone

Outdoor LED Canopy Lighting Fixtures – Perfect for Various Outdoor Applications including Gas Stations, Loading Docks, Parking Garages, and Other Ceiling Mounted Commercial Uses

This LED Canopy Light is an XFit canopy light from Keystone and is a great choice for your next outdoor project! LED canopies replace traditional metal halide fixtures to be more energy efficient for applications including parking garages, loading docks, covered walkways, and entrance areas. This light comes with both Power Select and Color Select technology making it 9 fixtures in 1. Its low-profile design makes it ideal for a wide range of both new and replacement installations.

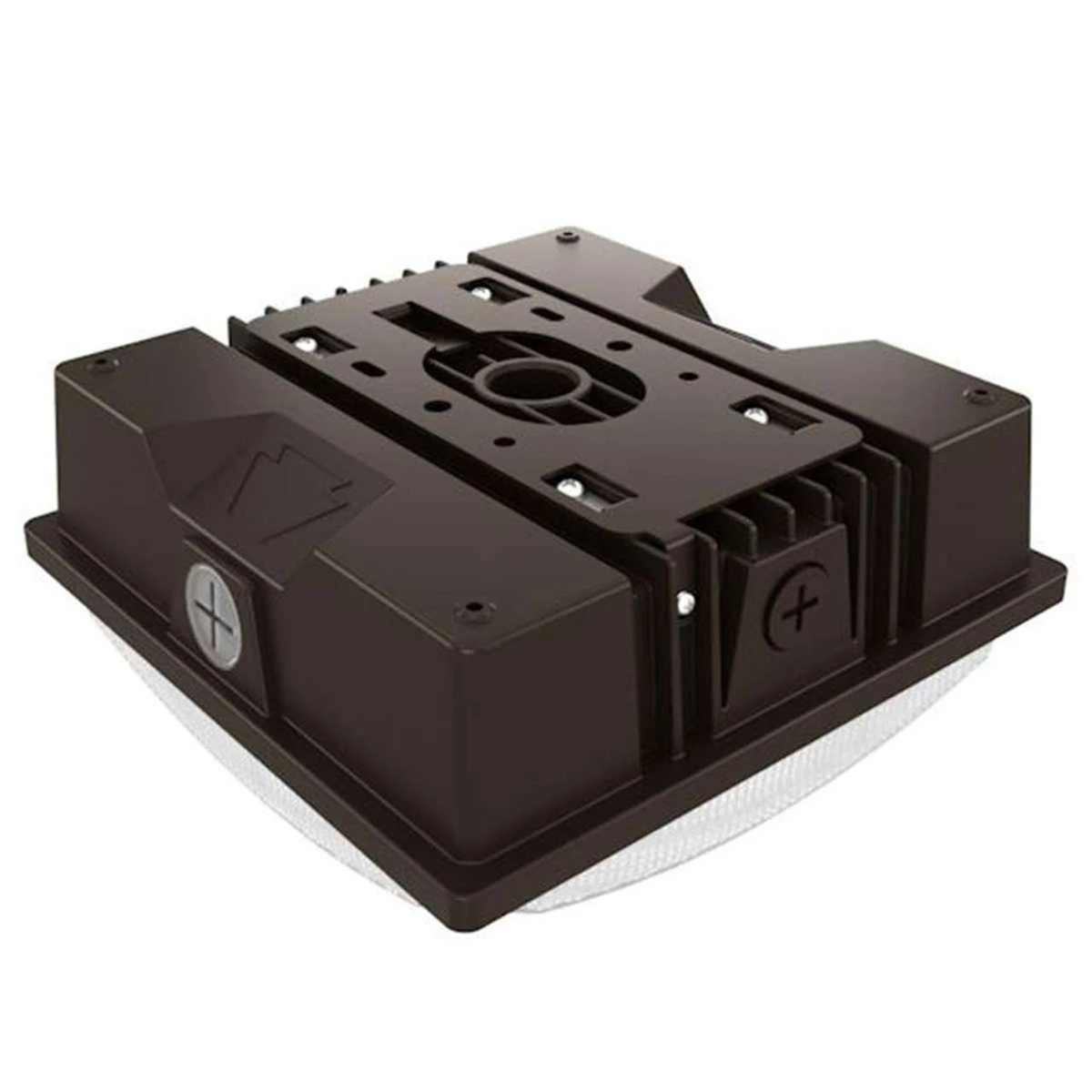

Installation is made easy with the easy-hang bracket that holds the fixture in place to make installation quick and simple installation. This light’s housing is durable made of heavy duty die cast aluminum suitable for standard junction box mounting or 3/4″ NPT pendant mounting. The diffuser lens is made of impact resistant polycarbonate.

Built-in Photocell and Other Accessories

This canopy light is powered by Keystone branded LED 0-10V dimming driver. It also has a built-in dusk-to-dawn photocell. The photocell can be turned on or off. There are also additional accessories that can be purchased for use with this canopy light on LightUp. This light has the following accessories that are compatible with it:

• LEDMNTG1000010005 – Bronze Mounting Back Plate for LED Canopy Fixture
• LEDLENS1000010001 – 110 Degree Beam Angle Lens for 8in. LED Canopy Light

Product Specs:

• Size: 8″ Square
• Color: Bronze
• Wattage Adjustable (lumens very by color temperature):
• 20W
• 3000K: 2500 Lumens (125 lm/W)
• 4000K: 2800 Lumens (140 lm/W)
• 5000K: 2600 Lumens (130 lm/W)
• 30W
• 3000K: 3750 Lumens (125 lm/W)
• 4000K: 4200 Lumens (140 lm/W)
• 5000K: 3900 Lumens (130 lm/W)
• 40W
• 3000K: 5000 Lumens (125 lm/W)
• 4000K: 5600 Lumens (140 lm/W)
• 5000K: 5200 Lumens (130 lm/W)
• Color Tunable:
• 3000K
• 4000K
• 5000K
• Input Voltage: 120-277V
• Dimmable: Yes (0-10V)
• CRI: >80
• Distribution Pattern: 160°
• Photocell: Yes (included)
• Equivalent: 175W Metal Halide
• UL Certified for wet locations, IP65 Rated, DLC Premium V5.1

Product Dimensions: 8.03″ L x 8.03″ W x 3.66″ H

What are LED canopy lights used for?

Canopy lights are used for safety and security purposes primarily. They help light up areas that need bright light including parking garages and gas stations where there is not only vehicle traffic but pedestrian traffic. Canopy lights provide a reliable performance giving bright light to help provide safe environments.

Is this canopy light dimmable?

Yes, this LED canopy light is 0-10V dimmable and powered by Keystone LED 0-10V dimming driver.

Can this light withstand direct contact with water?

Yes, this LED canopy light can withstand direct contact with water. It is both UL certified for wet locations and IP65 rated.

This LED canopy light is DLC Premium V5.1 listed and may qualify for energy-saving rebates! Learn more about LED Lighting Rebates or check out our FREE Rebate Assistant tool to help you find rebates in your area and start saving money on your next lighting project!
