2ft. LED Explosion Proof Vapor Tight Light – 30W – 4200 Lumens – C1D2 – Venas

The 30W R-Series 2ft. LED Explosion Proof Vapor Tight Light by Venas is a C1D2 classified fixture built to withstand harsher conditions than normal light fixtures. This light can be used as a spotlight, down light, tunnel light, flood light or wall pack for general illumination in hazardous locations. This light is perfect for industries such as oil and gas industry, chemical industry, metal treatment facilities, ocean, marine, and aerospace field facilities, food and alcohol industry, and any other high humidity, high dust, or high temperature locations.

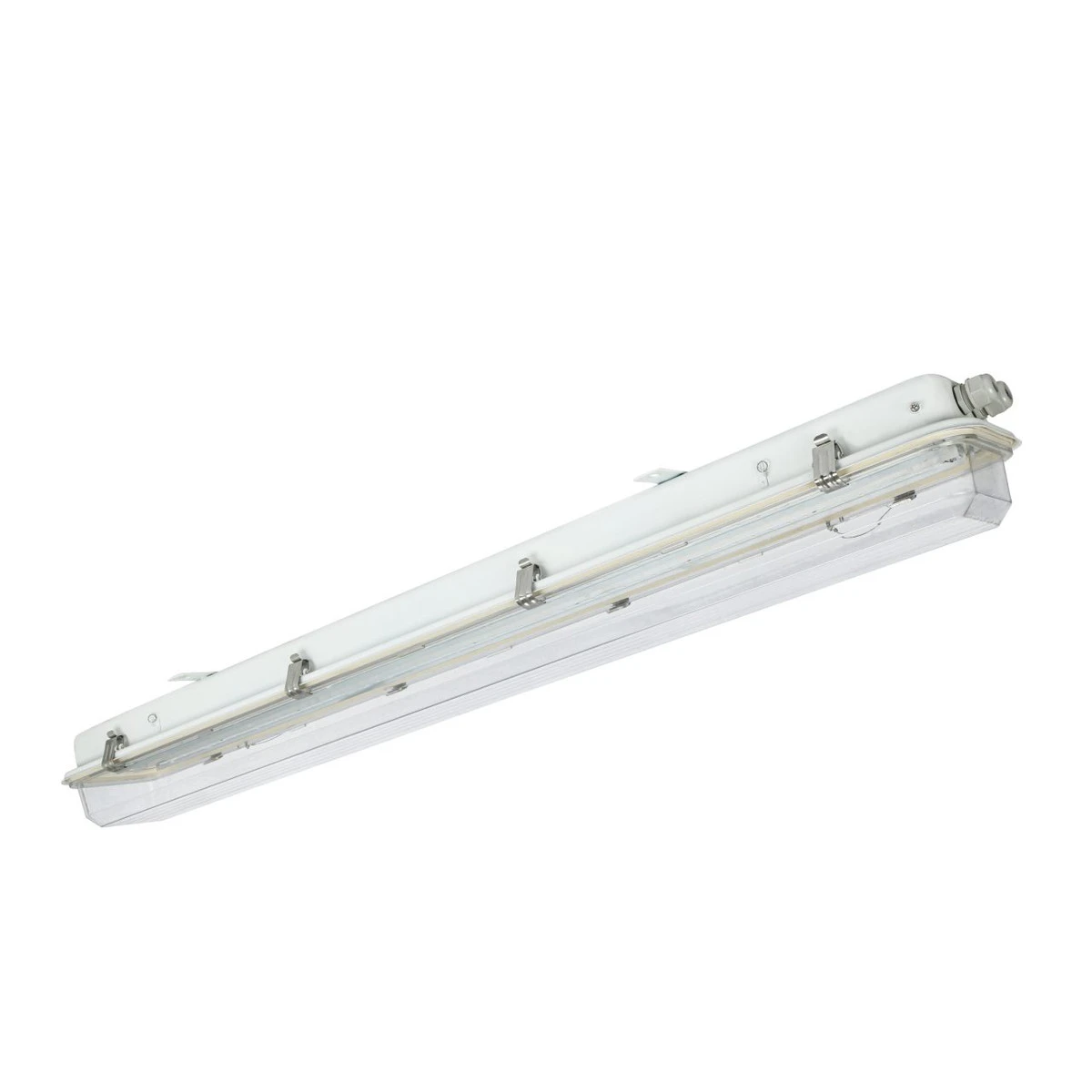

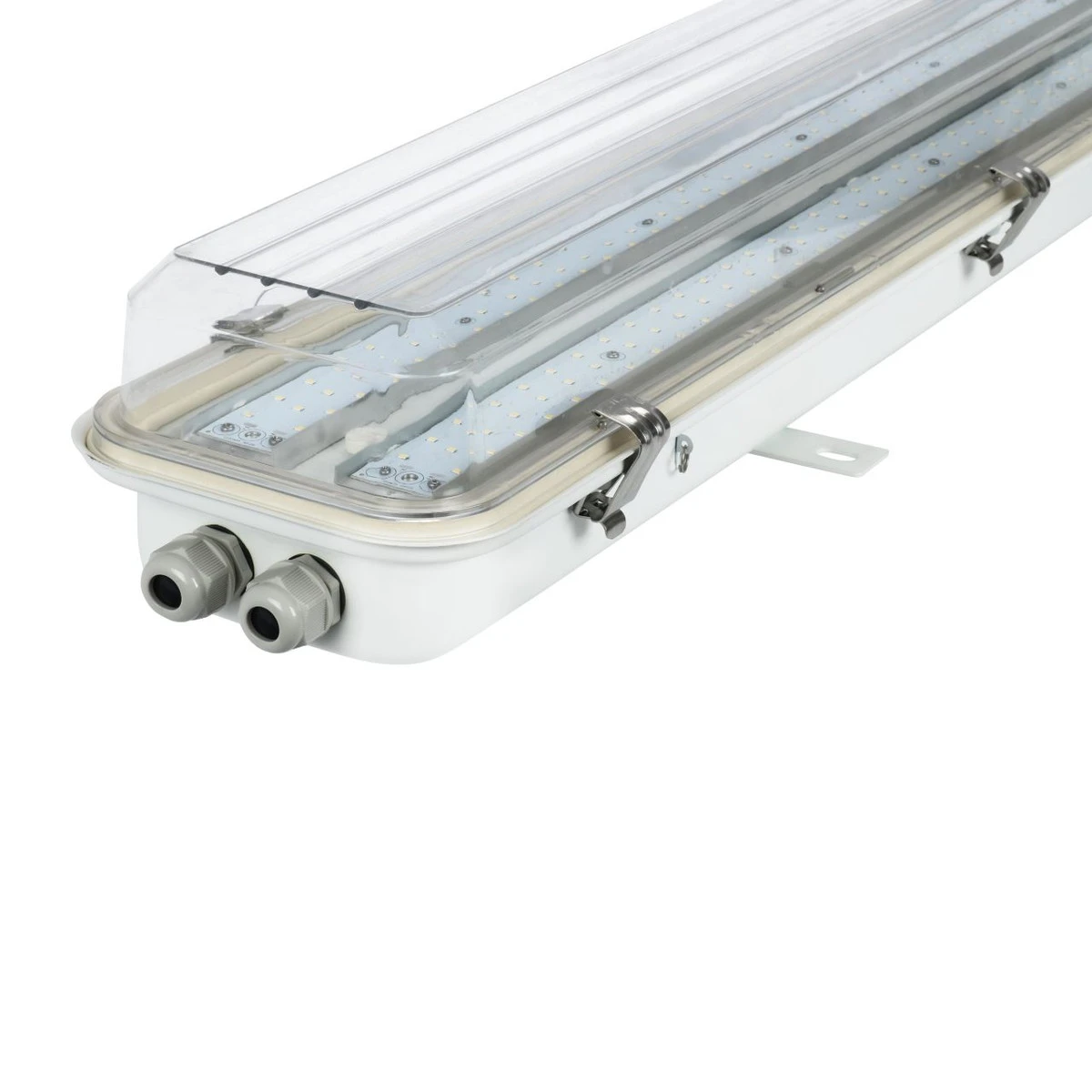

This robust fixture is constructed with a copper-free aluminum housing with marine-rated powder coat finish, shatterproof tempered glass and stainless-steel mounting hardware and brackets.

This fixture has a plethora of mounting options and accessories available for different mounting surfaces such as ceiling mount, wall mounting and pole mounting. Inquire separately about various mounting accessories and availability.

Hazardous location lighting is subject to US National Electric Code (NEC) standards classifying risk levels which are divided into three classes and two divisions. This light is Class 1 Division 2 (C1D2) meaning:

• Class 1 – Hazardous Material in Surrounding Atmosphere: flammable vapors or gases present
• Division 2 – Presence of hazardous materials: Hazard is present, but only exposed through system failures.

Product Specifications:

• Wattage: 30W
• Lumens: 4200
• Lumens/Watt: 140
• CRI: >70
• Dimming: Y
• CCT: 5000K
• Beam Angle: 120°
• Input Voltage: 100-277V
• Operating Temperature: -40°F ~ 131°F
• Certifications: UL1598/UL1598A/UL844/ATEX/IECEx
• Warranty: 5 year

Applications:

• All Petroleum Production and Refinery
• Petroleum Loading and Transportation
• Petroleum Storage and Retail
• Paint Facilities
• Pumping Stations in any Environment
• Metal Smelting, Foundry and Fabrication
• Ming Operations and Service
• Ocean Platform Facilities and Structure
• Aerospace Clean Room and Production
• Chemical Production and Storage
• Ocean Vessel Operations
• Military Space Conditions
• Flour and Fine Particle Production and Storage
• Food and Distilling Production
• Electrical Power Generation and Stations
• Other high humidity, high vapor, high dust and high temperature locations

Product Dimensions: 27.48″ L x 8.66″ W x 5.26″ D
